30m IKAR H33 Fall Arrest Block inertia reel Rated 136kg/300lbs

Availability: Out Of Stock
Vendor: IKAR
SKU: BVR-41-H33
Fall Arrest Block with an integral recovery mechanism, 30m steelrope lifeline to EN360:2002 and EN1496 Length - 30m Aluminium body housing Light weight Steel rope lifeline Premium components Vertical &...
$1,950.00
$1,950.00
$1,950.00
Save $0.00
30m IKAR H33 Fall Arrest Block inertia reel Rated 136kg/300lbs

30m IKAR H33 Fall Arrest Block inertia reel Rated 136kg/300lbs

$1,950.00
30m IKAR H33 Fall Arrest Block inertia reel Rated 136kg/300lbs

30m IKAR H33 Fall Arrest Block inertia reel Rated 136kg/300lbs

$1,950.00
Description
Description
x

Fall Arrest Block with an integral recovery mechanism, 30m steelrope lifeline to EN360:2002 and EN1496

  • Length - 30m
  • Aluminium body housing
  • Light weight
  • Steel rope lifeline
  • Premium components
  • Vertical & horizontal applications
  • Designed to be tough for harsh environments
  • Optimised for high impact edge abrasion

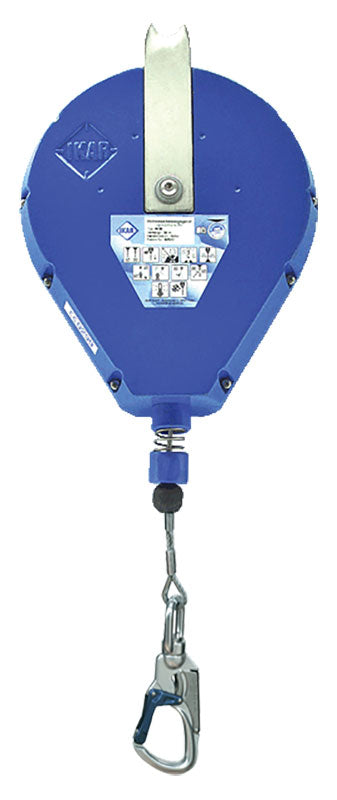

This aluminium housed fall arrest block is a sturdy, low maintenance device fitted with a steel rope lifeline, terminated with a steel double action hook.  The attachment anchorage point on the fall arrest block is an open steel handle, suitable for connection via a standard karabiner type connector, or a standard karabiner type connector with an anchorage sling, or a large karabiner.

Horizontal Usage: The lifeline in this fall arrest block has been tested in a simulated fall over an edge and passed the German draft amendment EN360. However, not all edges will have the same effect on the lifeline as the tested steel edge, so when using this fall arrest block you should use it with a 1m dyneema tail(which has better fall characteristics protecting the hook from impacting on the edge and being forced open).  Sewn directly onto the harness 'D' ring or connected to the harness via a mallion, will eliminate the issues associated with accidental loading across the minor axis of the hook and will help to minimise impact and edge abrasion.

This pastic housed fall arrest block is a sturdy, low maintenance device fitted with a steelrope lifeline, terminated with a steel double action hook. The attachment anchorage point on the fall arrest block is an open steel handle, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling, or a Large Karabiner.

The lifeline in this fall arrest block has been tested in a simulated fall over an edge and passed the German draft amendment EN360. However, not all edges will react in the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the event of an arrested fall, the lifeline does not pass over an edge.

Product Code
Lifeline Length
Dimensions
Approx Weight
H33
30.0m
640 x 320 x 120 mm
18.0 Kg
