Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage
Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage
Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage
Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage

Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage

Availability: Out Of Stock
Vendor: Hydrajaws
SKU: HDJ-290-003
BULKY ITEM, ADDITIONAL FREIGHT COSTS APPLY* Lightweight and ergonomically designed, the M35+ standard setup is the lightest unit on the market, capable of testing up-to 35kN. Enhanced by new Easi-Effort...
$5,099.00
$5,099.00
$5,099.00
Save $0.00
Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage

Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage

$5,099.00
Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage
Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage
Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage
Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage

Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage

$5,099.00
Description
Description
x

BULKY ITEM, ADDITIONAL FREIGHT COSTS APPLY*

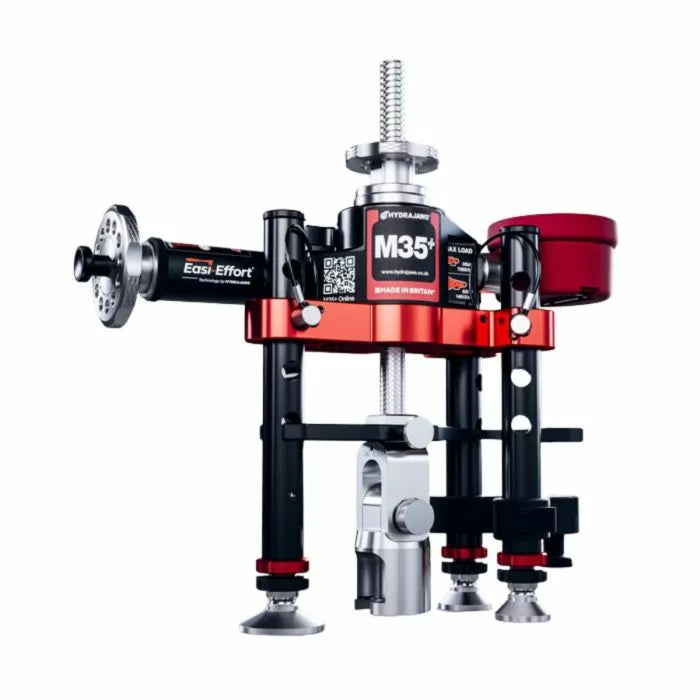

Lightweight and ergonomically designed, the M35+ standard setup is the lightest unit on the market, capable of testing up-to 35kN.

Enhanced by new Easi-Effort technology developed by Hydrajaws, technicians can confidently test anchor points for 7.5kN by hand simply via the hand-wheel.

With increased testing frequency and reduced operator effort, the M35+ is an essential tool for carrying out compliance testing procedures in line with personal fall protection and scaffold ties.

Key Features:

  • Complete pull testing procedures in line with BS 8539, BS 7883:2019, BS EN 795:2012, BS 8610, NASC Guidance Note TG4:19 and AEFAC-TN05.
  • Advanced-Data Logging with Hydrajaws Verify Pro App - Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the Hydrajaws Verify App
  • Bluetooth - dual-scale rechargeable digital gauge gives an accurate and clear display of the readings.
  • Hydrajaws gauge calibration certificate (valid for 12 months).
  • Apply loads by hand up-to 10kN via the operator's hand-wheel. Using the supplied ratchet the hand-wheel can be removed and loads above 10kN can be applied.

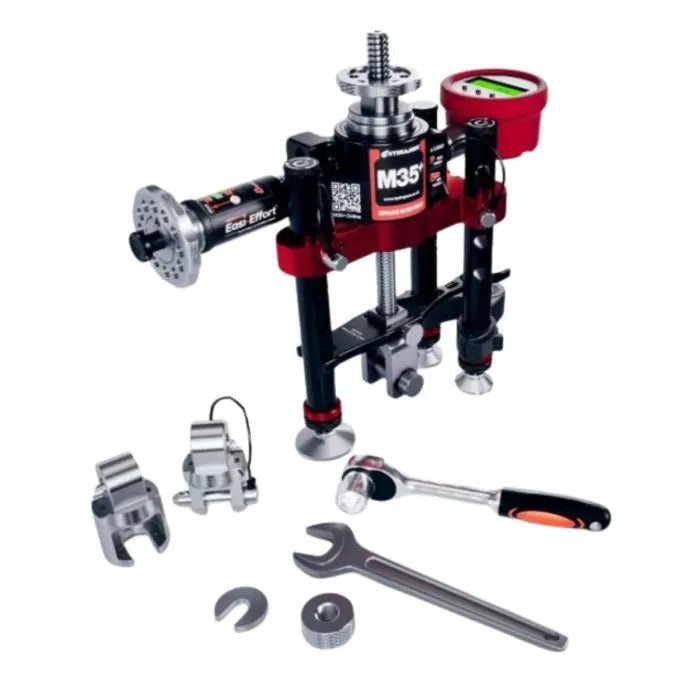

Included in the Standard M35+ Kit:

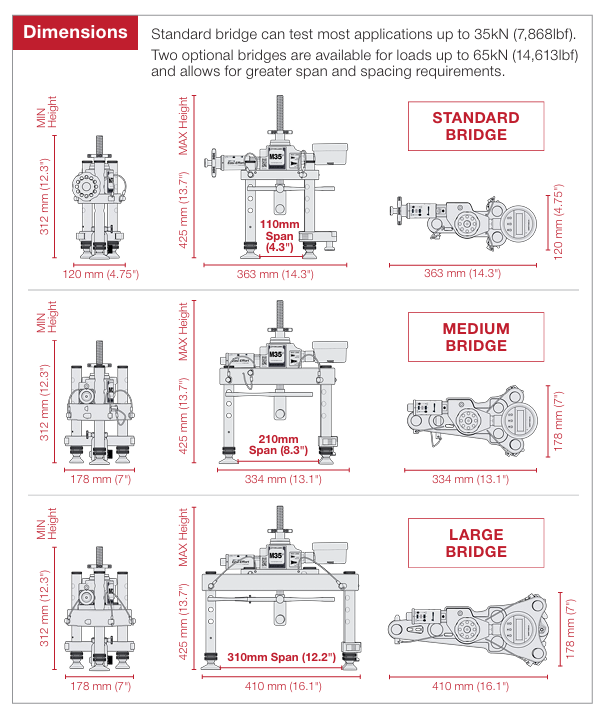

  • M35+ load cell fitted to the 35kN (7,868lbf) standard bridge

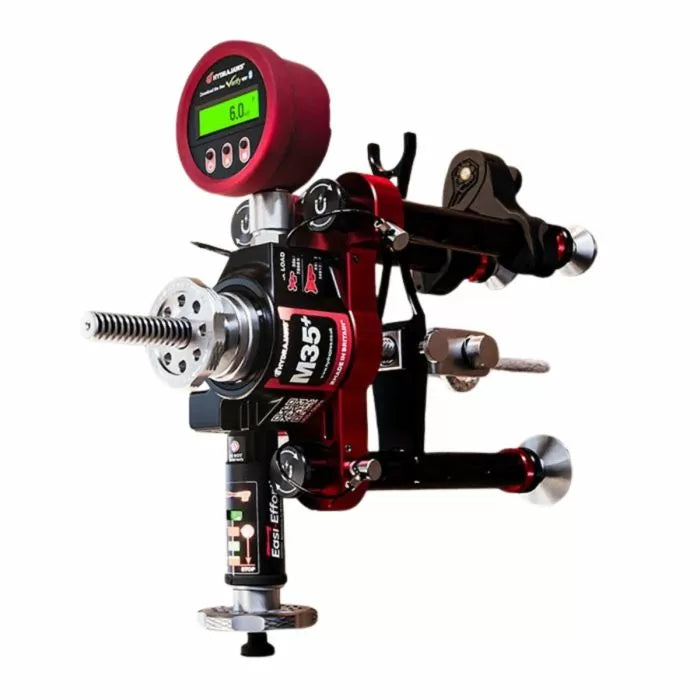

  • Digital Bluetooth Rechargeable Gauge
  • Drop rod hand-wheel
  • Operator's hand-wheel
  • Height adjustable legs with swivel feet, and leg brace
  • Bolt test adaptor - fits to the primary 24mm clevis fork via the captive clevis pin. Receives both slotted button and threaded button adaptors
  • 8 slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, 13, 16.5 and 20.5mm
  • 6 threaded button adaptors: M6, M8, M10, M12, M16 and M20
  • Primary 24mm clevis fork (65kN SWL) and drop rod with anti-rotation device. Accepts both bolt test adaptor and mini-clevis
  • 20mm mini-clevis adaptor with 35kN SWL
  • Rucksack with foam filler
  • Tester lanyard
  • Ratchet and ratchet tether
  • 24mm spanner
  • 3mm ball driver
  • 12-month Calibration Certificate
  • Operating Manual
