3D Wall Panels 3M 3M Abrasives 3M DBI SALA 3M Dbi Sala Accessories Pelsue LifeGuard System (LG5A) & 18m IKAR winch (HRA18P)

LifeGuard System (LG5A) & 18m IKAR winch (HRA18P)

Availability: Out Of Stock
Vendor: Pelsue
SKU: PLS-LG5A-HRA18P
LifeGuard System - 42" W x 42" L x 75" H - heavy-duty, leveling feet LifeGuard Confined Space Safety System Fall Protection The Pelsue LifeGuard System is our flagship fall...
$6,790.00
$6,790.00
$6,790.00
Save $0.00
LifeGuard System (LG5A) & 18m IKAR winch (HRA18P)

LifeGuard System (LG5A) & 18m IKAR winch (HRA18P)

$6,790.00
LifeGuard System (LG5A) & 18m IKAR winch (HRA18P)

LifeGuard System (LG5A) & 18m IKAR winch (HRA18P)

$6,790.00
Description
Description
x

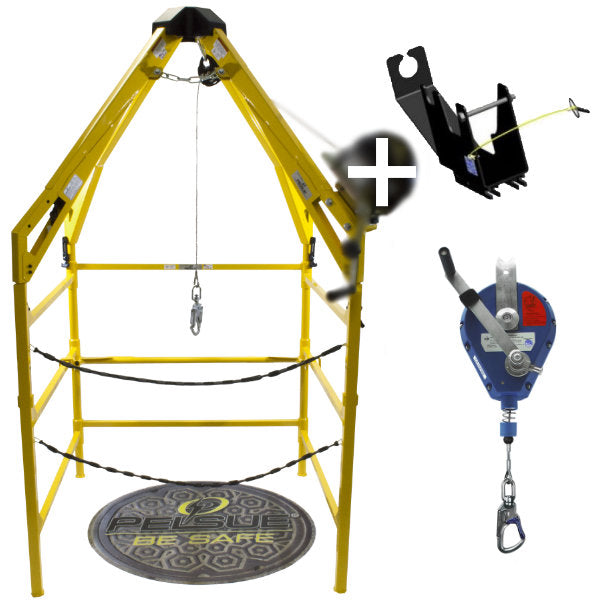

LifeGuard System - 42" W x 42" L x 75" H - heavy-duty, leveling feet

LifeGuard Confined Space Safety System

Fall Protection

The Pelsue LifeGuard System is our flagship fall protection system for confined space applications. The system provides anchorage for hoists and SRLs for use in fall protection and rescue, while also acting as a barricade to prevent people from accidentally falling or slipping into the confined space.

It can be quickly and easily placed around a manhole, where its durable, structural grade aluminum and steel frame prevents workers from getting too close, while the safety chains allow for easy access to the manhole. The system effortlessly collapses into two different assemblies, and a carrying case is included for the upper assembly, allowing for easy transport and storage.

When deployed, the system is compact, occupying 3.5’ x 3.5’ (LG5A) or 4’ x 4’ (LG5X) and is perfect for applications where space is limited.

It can rapidly be deployed by a single person in minutes, making it an invaluable solution when a rescue is required.

There are dual anchor points located on the top assembly, allowing you to simultaneously connect a hoist and an SRL to the system. The system includes one hoist bracket and mounting plate. A secondary bracket location is already set up to allow for quick and easy installation if you are using a secondary hoist or SRL. When you need both rescue and fall protection capabilities, you can rely on the LifeGuard.

With a heavy-duty frame and attachments for both a hoist and an SRL, the Pelsue LifeGuard System is the ultimate 3-in-1 solution.

The upper assembly and lower assembly are attached via flexible draw latches, anchoring the two together. To prevent movement while in use, all 4 feet are encased in rubber bottoms.

The LifeGuard is made in Colorado, USA and meets or exceeds OSHA and ANSI standards.





HRA18P

IKAR 18m Fall Arrest Block SRL inertia reel type 3 HRA18P

Fall Arrest Block with an integral recovery mechanism, 18.0m steelrope lifeline in an aluminium housing to EN360:2002 and EN1496

This aluminium housed fall arrest block is a sturdy, low maintenance device fitted with a steelrope lifeline, terminated with a steel double action hook. The attachment anchorage point on the fall arrest block is an open steel handle, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling, or a Large Karabiner.

In addition to connecting the fall arrest block with recovery mechanism via the steel handle, it can also be used in conjunction with DB-A1 or DB-A2 aluminium tripods, to protect the user when ascending and descending a vertical shaft i.e. entry into a sewer system.

This fall arrest block also has a built in recovery mechanism, which is engaged by pulling a pin on the side of the block and engaging a winding handle. This then allows the device to be used to lift or lower a casualty post fall, or if they have become incapacitated in a confined space.

The lifeline in this fall arrest block has been tested in a simulated fall over an edge and passed the German draft amendment EN360. However, not all edges will react in the same way as the tested steel edge, so when using this fall arrest block, every effort must be made to ensure that in the event of an arrested fall, the lifeline does not pass over an edge.

The dimensions of this block are: 570 x 240 x 210 mm.
