Pelsue LifeGuard System Confined Space Entry System
Availability:
Out Of Stock
Vendor:
Pelsue
SKU:
LG5A
The Pelsue #LG5A system is a simple to use, lightweight, safety product for usage around underfoot manways. The LG5A system is composed of two major parts, the first of which...
- $9,878.40
$9,908.40- $9,878.40
- Unit price
- / per
Save $30.00
Couldn't load pickup availability
Description

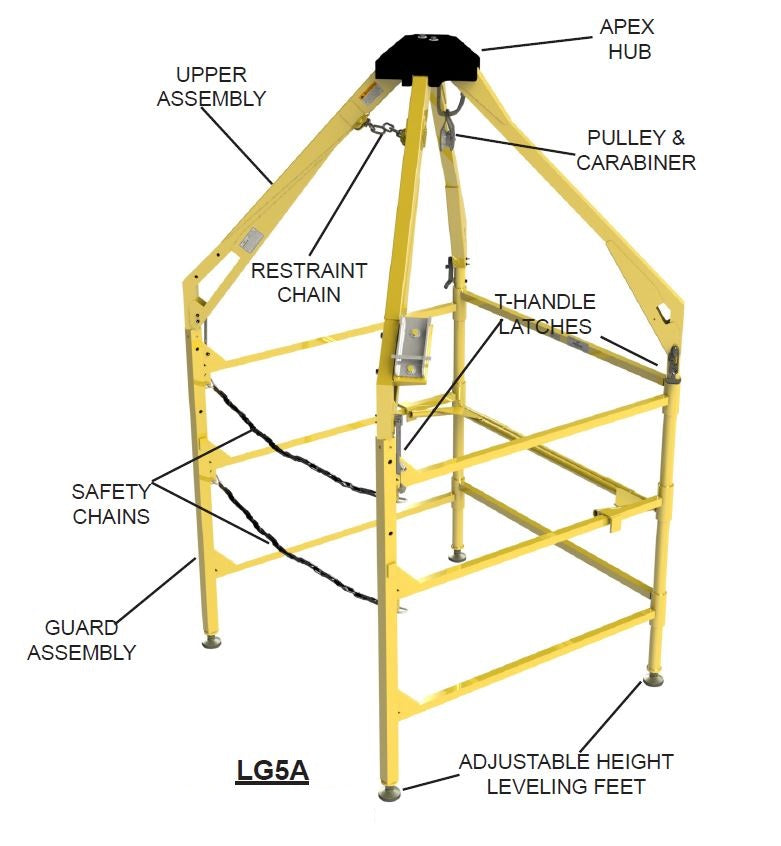

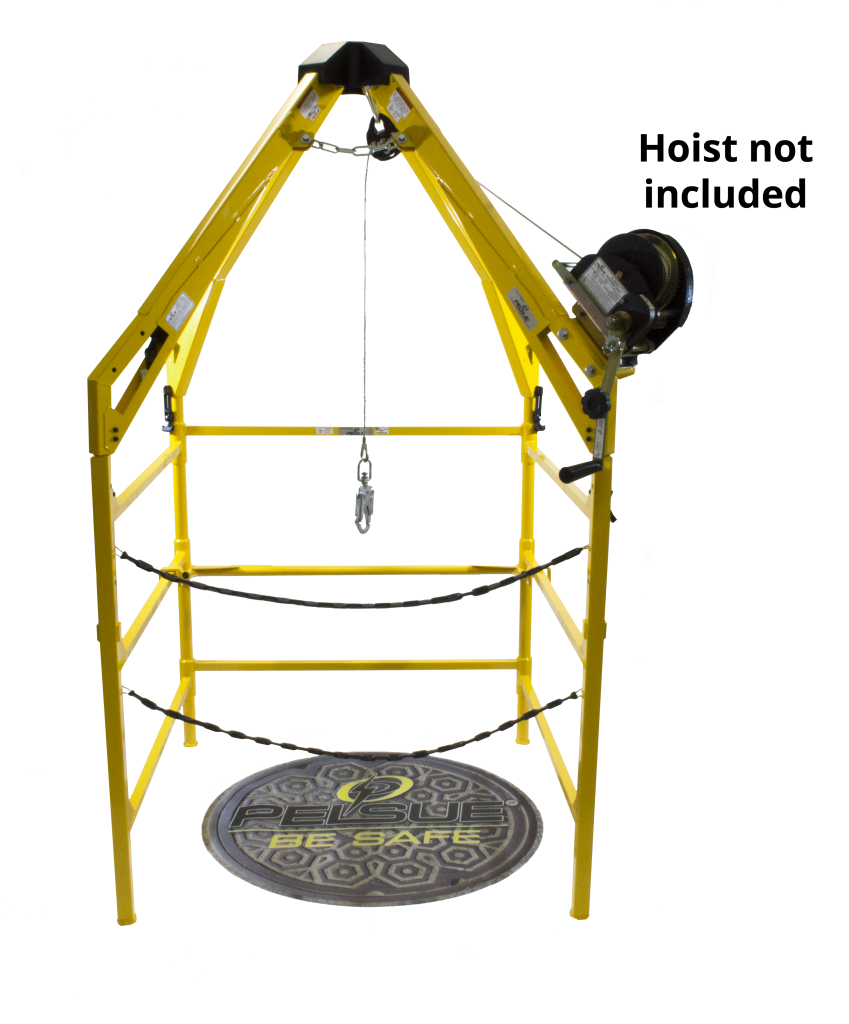

xThe Pelsue #LG5A system is a simple to use, lightweight, safety product for usage around underfoot manways. The LG5A system is composed of two major parts, the first of which is a compact folding guard fence fully equipped with safety chains that enables the barricading of open manways when entry is necessary.
The second major component of the system is a four-legged lightweight, fold-able structure that inserts into the tops of the guard section’s four corner posts.

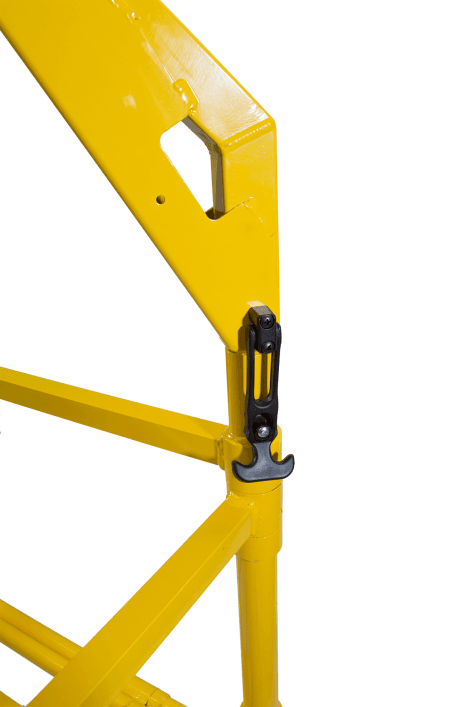

The four-legged section can be secured to the guard via 4 highly durable rubber t-handle latches located at the ends of each of the 4 legs.
This safely keeps the upper section secured to the guard section to prevent the system from disengaging from one another or if movement of the system is needed while the upper and lower sections are desired to remain attached.
The upper assembly has several features which allow the assembled guard and upper section to be utilized as a certified overhead lifting device and also provides compliant overhead anchorage for the attachment of personal fall arrest systems. The LG5A system is truly a single source, do-it-all product for safe and compliant confined space entry operations
General Specifications:The #LG5A is designed and tested to be used in 2 General Applications:
As part of a confined space entry operation to be utilized as a personnel lifting, lowering, and retrieval device as required in OSHA 1910.146 & ANSI Z117.1.
1. Man Rated Load Capacity........ Single user of 350 LBS (159 KG.) Maximum Weight
2. As an anchorage for a personal fall arrest system as per OSHA 1926 & ANSI A10.14.
!Warning! The LG5A system must be operated in accor-dance with the product manual and all labels in order to retain the stated compliance & ratings. A fall arrest force limiting device must be utilized when employed as a com-plete fall arrest system.
Materials & Construction:
Guard Assembly (#LG5-GA):
- Main Structure ..............................6000 Series Aluminum
- Chains ..........................................Coil, Plated Steel
Upper Assembly (#LG5-TA):
- Front legs .....................................Carbon Steel
- Rear legs ......................................Structural Aluminum
- Apex Hub .....................................Plate Aluminum
- Chain ............................................Coil, Plated Steel
- Hardware .....................................Grade 5 & Grade 8 (plated)
Finish: Safety Yellow Powdercoat (except where plated)
Weight:
LG5-GA (Guard)...........................35.5 lbs. (16.1 kg)
LG5-TA (Upper)............................ 41.8 lbs. (19.0 kg)
LG5A (Total System)....................77.3 lbs. (33.1 kg)
Weight of Pulley & Carabiner..........2.25 lbs
Other Features:
- Easily assembles over most manways for safe and secure lifting & retrieval of personnel
- Several options for winch mounting make the system compatible with many winch and fall arrest devices.
- Constructed primarily of lightweight & Corrosion-resistant powder coated aluminum.
- System incorporates an integral, compliant overhead anchor point for fall arrest system anchorage.
- The entire system splits into two folding segments for easy trans-port & storage.
- Latches secure upper assembly to guard assembly.
System Includes:
- 1 upper assembly (LG5-TA)
- 1 guard assembly (LG5-GA)
- Set of 4 metal feet with rubber bottoms
- 1 hoist bracket & mounting plate for use with standard retrieval hoist
- 1 pulley assembly with auto-lock carabiner
- 1 set of flexible draw latches to anchor the assembly to the guard assembly
- Winch NOT Included.
