Petzl ZIGZAG PLUS Prusik swivel + CHICANE Auxiliary brake
Availability:
Out Of Stock
Vendor:
Petzl
SKU:
D022BA00-D022CA00
Pictures are for illustration Purposes only Combo is for: 1 x Petzl Chicane (D022CA00) 1 x Petzl ZigZag Plus (D022BA00) 1 x Petzl Black AM'D Triple-lock Karabiner (M34ATLN) Petzl...
- $769.95
$769.95- $769.95
- Unit price
- / per
Save $0.00
Couldn't load pickup availability
Description

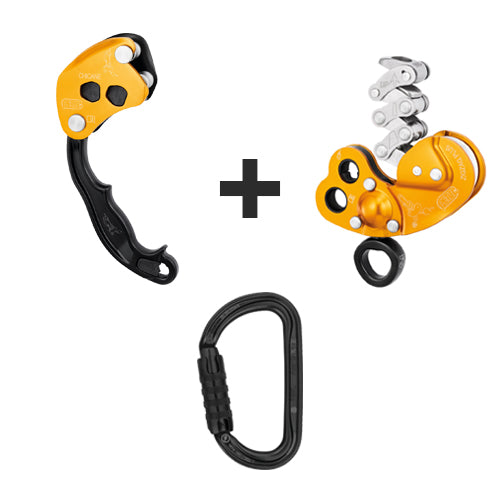

xPictures are for illustration Purposes only Combo is for:
1 x Petzl Chicane (D022CA00)
1 x Petzl ZigZag Plus (D022BA00)
1 x Petzl Black AM'D Triple-lock Karabiner (M34ATLN)

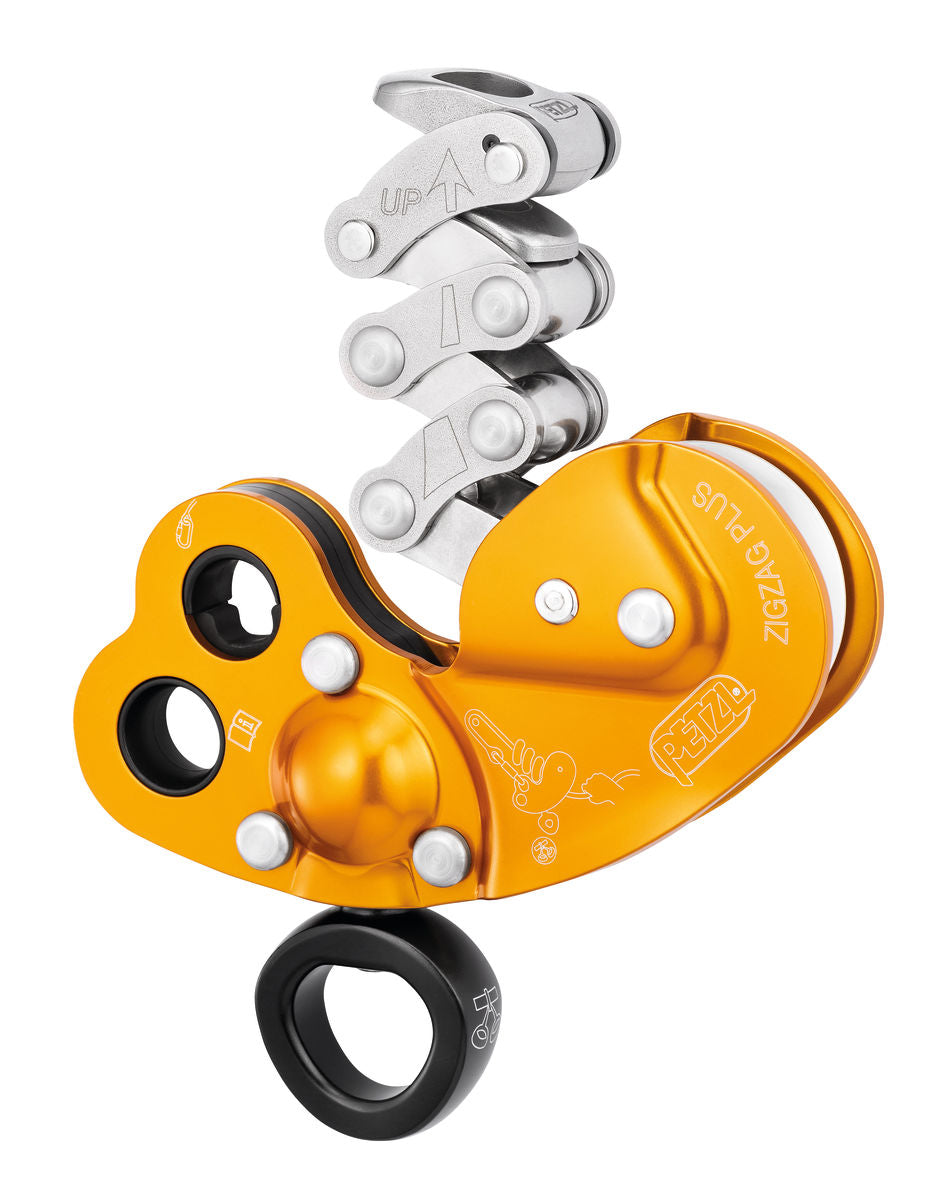

Petzl ZIGZAG PLUS Prusik Swivel
Description
- Intuitive to use:- technique identical to classic Prusik pulley system- the device locks automatically on the rope once the friction chain extends
- For efficient movement within the tree:- rope feed is smooth and precise thanks to the release lever, allowing the user great control over his/her movements. Adjusting the pressure on this lever controls the speed of movement- easy to take up slack, thanks to the pulley mounted on sealed ball bearings and the separated and curved side plates- lower attachment hole with high-efficiency swivel ensures stable and correct positioning of the mechanical Prusik and optimal rope glide through the device
- Versatile:- for use on either doubled ropes or a single rope, thanks to the CHICANE accessory, which offers more friction on the descent, and the KNEE ASCENT assemblies, which facilitate the ascent- upper attachment hole for the rope end when using a doubled rope or for the CHICANE auxiliary braking device when using a single rope. It has a flexible positioning ring that helps keep the connector oriented along its major axis- auxiliary attachment hole for adding a ZILLON lanyard or connecting a second system
- Durability:- steel construction for improved durability- separated and curved side plates for better wear resistance
- Rope compatibility: 11.5 to 13 mm diameter
- ZIGZAG PLUS allows the user to work in compliance with the ANSI Z133 standard
Specifications
- Material(s): aluminum, steel, nylon
- Weight: 425 g
- Rope compatibility: EN 1891 type A low stretch kernmantel ropes
- Working load limit: 140 kg
- Certification(s): CE

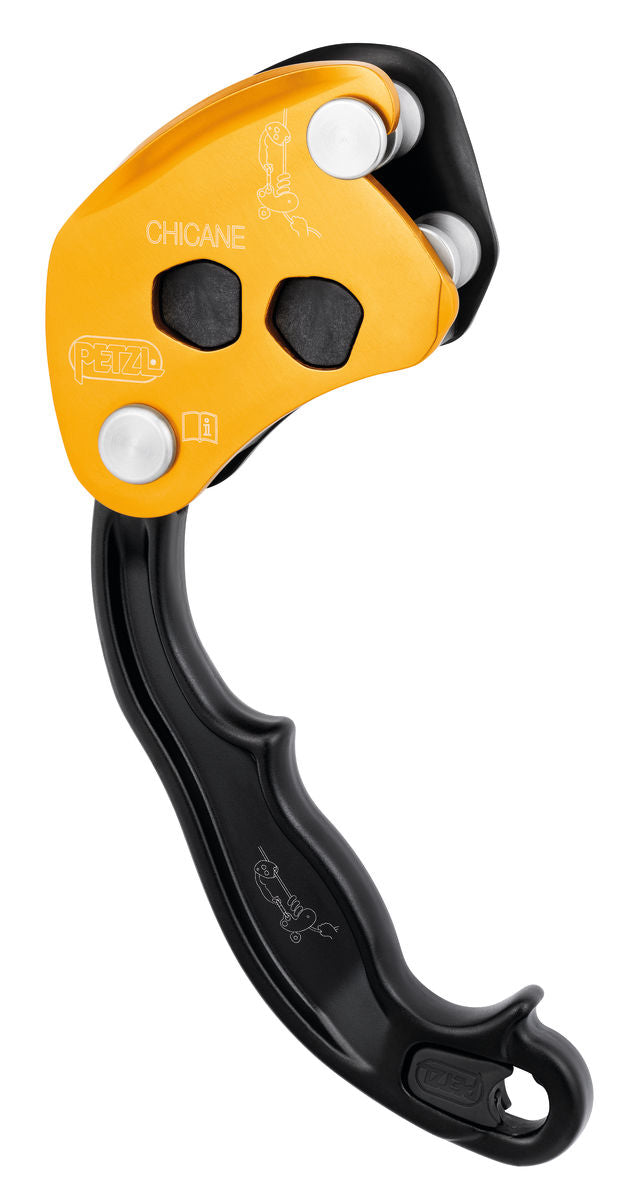

Petzl CHICANE Auxiliary brake for ZigZag
Description

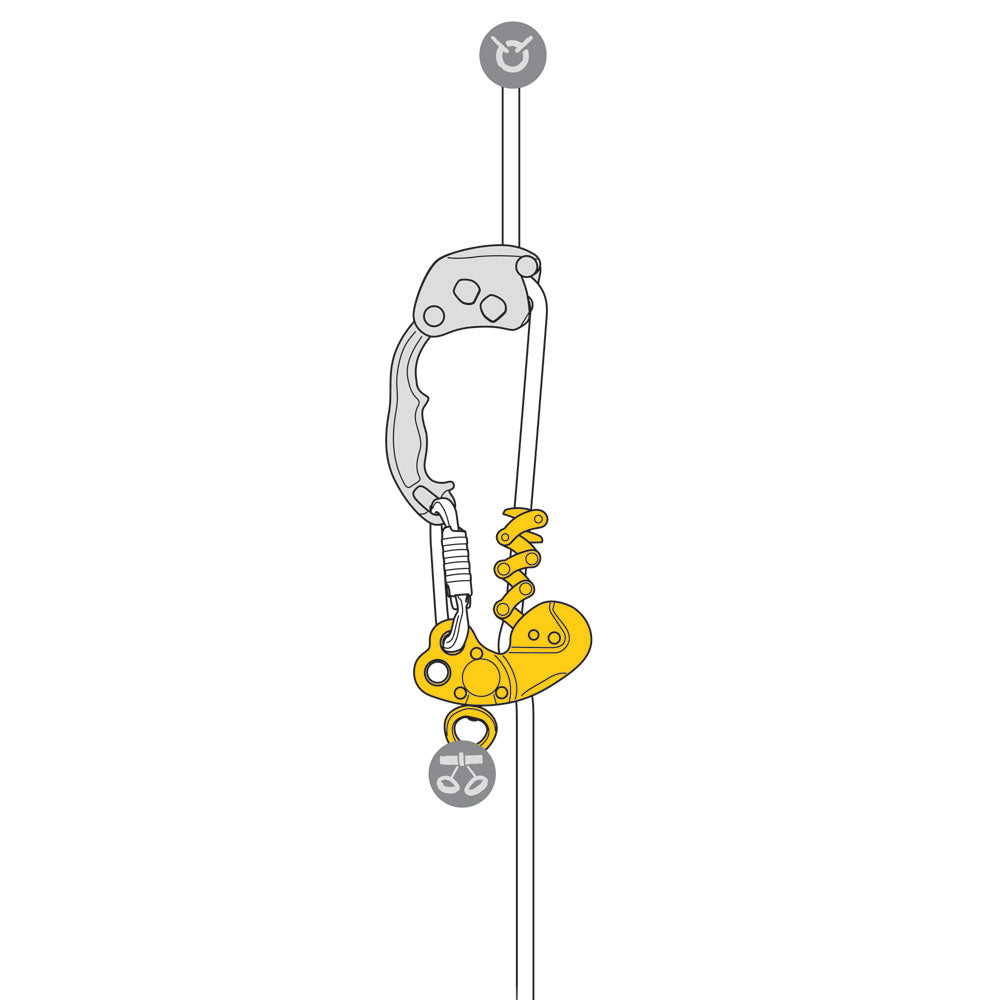

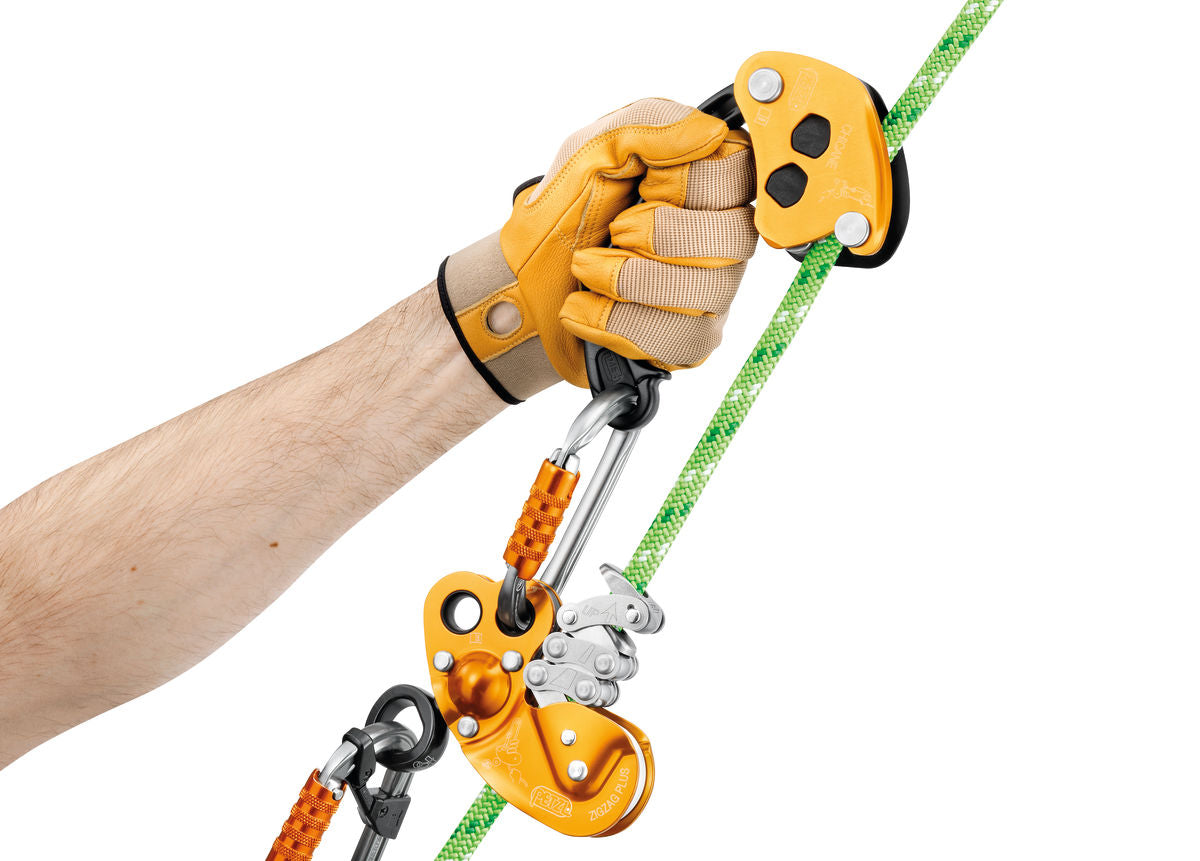

- Allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes:- continuous additional braking action, thanks to the added friction of the two friction pins- used with an Am'D or OK connector (not included). The H-shaped cross-section of the connector, together with the positioning ring of the mechanical Prusik, make the CHICANE and mechanical Prusik a compatible unit that ensures smooth rope glide through the brake during ascents- ergonomic handle facilitates movement while limb walking
- Easy installation:- openable side plate for quick and easy installation on the rope- triple action unlocking limits rick of accidentally opening the side plate - connects on the upper hole of the mechanical Prusik
- Optimized durability, thanks to the two friction pins, available as spare parts
- CHICANE allows the user to work in compliance with the ANSI Z133 standard
Specifications
- Material(s): aluminum, steel, nylon
- Weight: 255 g
- Min. rope diameter: 11,5 mm
- Max. rope diameter: 13 mm
- Rope compatibility: EN 1891 type A low stretch kernmantel ropes
- Working load limit: 140 kg
- Certification(s): CE

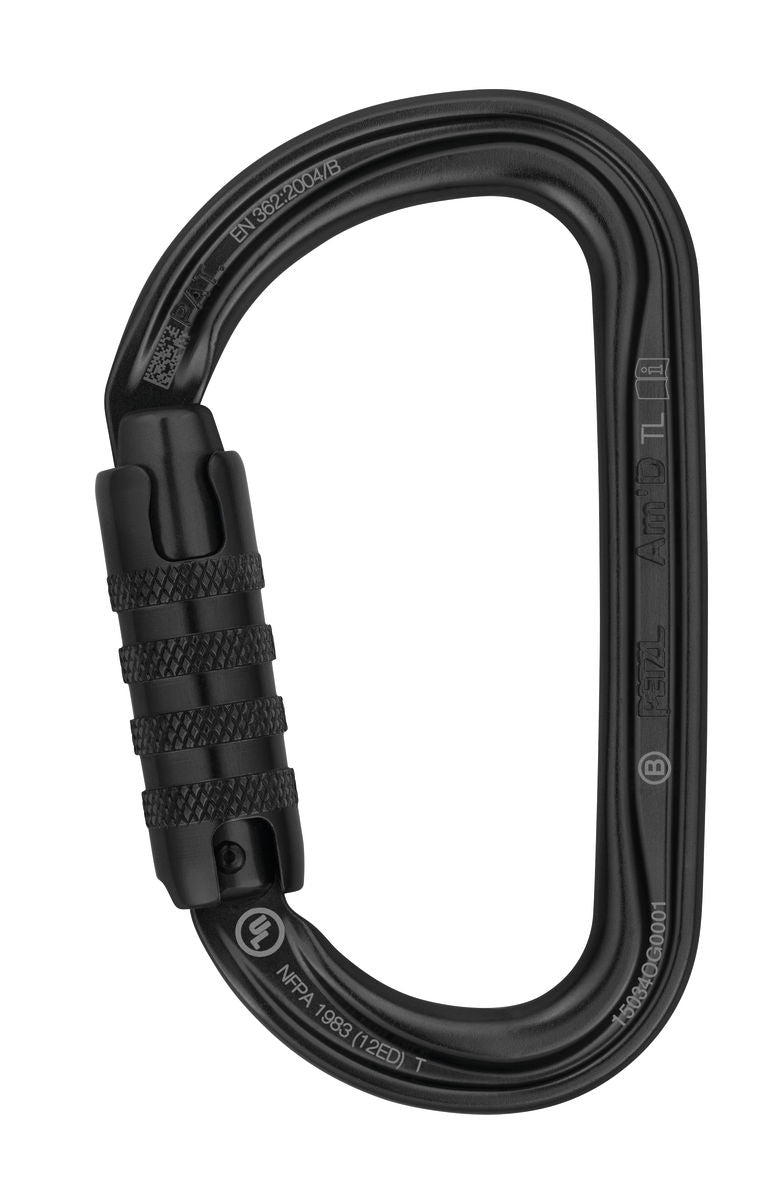

Petzl Black AM'D Triple-Lock Karabiner
Description
- D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
- Aluminum carabiner whose light weight reduces the weight of equipment the worker at height needs to carry
- May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
- Easier handling:- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner- Keylock system to avoid any involuntary snagging of the carabiner
- H cross-section:- ensures an improved strength-to-weight ratio- protects markings from abrasion
- TRIACT-LOCK: automatic locking with triple-action gate opening
Specifications
- Material(s): aluminum
- Certification(s): CE EN 362, EAC, NFPA 1983 Technical Use
References
| References | M34A TLN |
|---|---|
| Weight | 75 g |
| Locking system | TRIACT-LOCK |
| Color(s) | black |
| Major axis strength | 27 kN |
| Minor axis strength | 8 kN |
| Open gate strength | 7 kN |
| Gate opening | 24 mm |
