Skylotec ActSafe ACX Powered Rope Ascender AI-11-018 (POA-001)
Availability:
Out Of Stock
Vendor:
Skylotec
SKU:
SKY-POA-001
The ACX battery-powered winch is a motorised system to ensure the transport of persons or loads to areas that are difficult to access and where occasional or recurring work is...
- $21,490.00
$21,490.00- $21,490.00
- Unit price
- / per
Save $0.00
Couldn't load pickup availability
Description
xThe ACX battery-powered winch is a motorised system to ensure the transport of persons or loads to areas that are difficult to access and where occasional or recurring work is carried out. ACX is used, among other things, for cleaning facades or windows, for the maintenance of complex building structures, for the rotor blade maintenance of wind turbines or for transporting loads on masts.
The ACX POWER ASCENDER considerably simplifies and accelerates work on complex structures and makes expensive access systems or lifting platforms superfluous. Countless rescue scenarios can also be carried out efficiently and with minimum effort with the ACX. ACX forms a highly flexible system for easy and cost-efficient cleaning or maintenance. In an emergency, the ACX can be controlled by remote control. The operation and use of the ACX can be learned in special training courses.
- Simplifies and accelerates work on structures that are difficult to access
- Gentle application
- Control by remote control up to 150 m

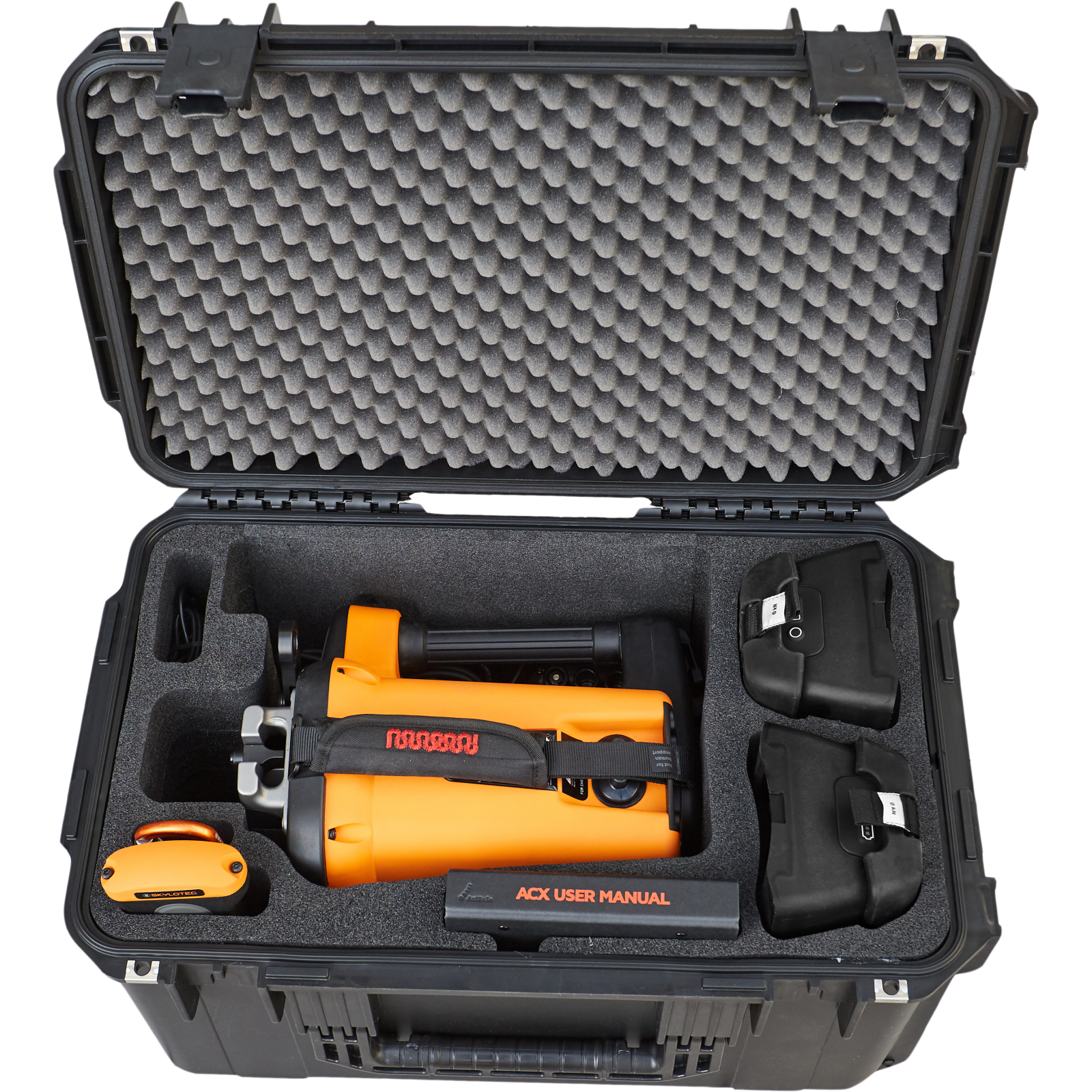

Each ACX system is supplied with the following included
- Pelican style hard case with extendable handle and wheels
- ACX unit
- x2 Batteries
- Remote
- Charger cables for batteries and remote
| ART.NR. | POA-001 |
|---|---|
| MATERIAL | Aluminium, Nylon, Steel |
| APPLICATION AREAS | Various |
| COLOUR | Orange |
| MINIMUM TEMPERATURE | -10 °C |
| MAXIMUM TEMPERATURE | 40 °C |
| USABLE IN SEAL PAC | No |
| GTIN | 4030281282402 |
| CUSTOMS TARIFF NUMBER | 84253100 |
| GROSS WEIGHT | 13.40 kg |
| NET WEIGHT | 13.40 kg |
| BATTERY RANGE AT 20° C & 100 KG LOAD | 600 m |
| BRAND | ActSafe |
| CHARGING TIME | 90 minutes |
| EMERGENCY DESCENT FUNCTION | Yes |
| EMERGENCY STOP FUNCTION | Yes |
| ENERGY SOURCE | POA-004 power supply, Removeable Battery |
| MAX. ASCENT RATE | 24 m/min |
| MAX. NOISE LEVEL | 76 dB(A) |
| MAXIMUM COMPATIBLE ROPE DIAMETER | 11.00 mm |
| MAXIMUM DESCENT SPEED | 24 m/min |
| MIN. ASCENT RATE | 1 m/min |
| MIN. NOISE LEVEL | 0 dB(A) |
| MINIMUM COMPATIBLE ROPE DIAMETER | 11.00 mm |
| MINIMUM DESCENT SPEED | 1 m/min |
| NUMBER OF RECHARGEABLE BATTERIES | 2 |
| REMOTE CONTROL RANGE | 150 m |
| SERIAL NUMBER MANDATORY | No |
| UNDERWATER OPERATIONS | No |
| WATER DUST RESISTANCE | IP 55 |
| WORKING LOAD LIMIT | 220.00 kg |
Key Features
x- Experience effortless transport of personnel and materials to challenging heights with the Skylotec ActSafe ACX.
This powered rope ascender revolutionizes your access solutions, significantly reducing effort and time spent on demanding tasks.
Imagine the efficiency gains across various projects! - The ACX offers unparalleled precision and control.
With adjustable ascent and descent speeds ranging from 1 to 24 meters per minute, you can confidently maneuver loads of up to 220kg with incredible accuracy.
Say goodbye to strenuous manual work and embrace smooth, precise movements. - Safety is paramount.
The ACX is equipped with an emergency descent function and an emergency stop, ensuring swift response capabilities should unexpected situations arise.
This robust safety features provide peace of mind during critical operations. - Work smarter, not harder.
The ACX’s long-range remote control (up to 150 meters) allows you to manage operations from a safe distance, maximizing efficiency and worker safety.
Observe and control the ascent or descent of loads with ease and precision. - Invest in a durable and reliable solution built to withstand the rigors of industrial applications.
The ACX, constructed from high-quality materials like aluminum, nylon, and steel, is designed for lasting performance and ease of maintenance.
This robust design ensures longevity and minimizes downtime.
Specifications
x| Art.nr. | POA-001 |
| Material | Aluminium, Nylon, Steel |
| Application areas | Various |
| Colour | Orange |
| Minimum temperature | -10 °C |
| Maximum temperature | 40 °C |
| Usable in seal pac | No |
| Gtin | 4030281282402 |
| Customs tariff number | 84253100 |
| Gross weight | 13.40 kg |
| Net weight | 13.40 kg |
| Battery range at 20° c & 100 kg load | 600 m |
| Brand | ActSafe |
| Charging time | 90 minutes |
| Emergency descent function | Yes |
| Emergency stop function | Yes |
| Energy source | POA-004 power supply, Removeable Battery |
| Max. ascent rate | 24 m/min |
| Max. noise level | 76 dB(A) |
| Maximum compatible rope diameter | 11.00 mm |
| Maximum descent speed | 24 m/min |
| Min. ascent rate | 1 m/min |
| Min. noise level | 0 dB(A) |
| Minimum compatible rope diameter | 11.00 mm |
| Minimum descent speed | 1 m/min |
| Number of rechargeable batteries | 2 |
| Remote control range | 150 m |
| Serial number mandatory | No |
| Underwater operations | No |
| Water dust resistance | IP 55 |
| Working load limit | 220.00 kg |
